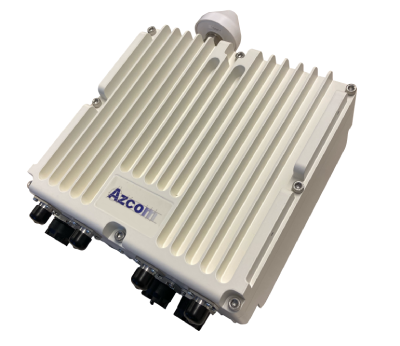

The Azcom Technology 5G Radio Unit (RU) is a compact, lightweight solution making use of the latest high-performance Radio Transceivers and advanced Analog Front End devices. The system also supports LTE and NB-IoT. The system has been developed completely in-house including key SW and FPGA blocks like the L1 Low-PHY Software, UL/DL O-RAN Fronthaul bridges, DFE Chains (DUC, DDC, CFR, beamforming), Platform Software and M-plane framework. This permits efficient support and customization without any third-party dependency.
The hardware design, along with the software and FPGA blocks, is also available for licensing. This allows customers to leverage our proven platform as a reference for their own tailored product development, ensuring a significant reduction in cost and development time line.
Key Features
| Multi-Standard – 5G-NR, LTE and NB-IoT |
| O-RAN compliant eCPRI, 7.2x split option |
| FDD, TDD |
| Up to 100GBE DU Interface |
| IBW up to 100 MHz |
| 4T4R, 2 Watt/Antenna |
| IP67 – Passive Cooling |
| Full O-RAN compliant S/M-plane |
PRODUCT FEATURES
| ACCESS TECHNOLOGIES |
|---|
| 5G, 4G, NB-IoT |
| KEY FEATURES |
|---|
| O-RAN v.6.0 |
| Multi RAT Technology (5G, 4G and NB-IoT) |
| O-RAN 7.2x Split |
| CAT A and CAT B |
| IQ compression Fixed, BFP and Modulation |
| Duplex mode TDD, FDD |
| Sub-Carrier Spacing (SCS) – 15/30/60 kHz |
| Normal Cyclic prefix |
| All Short and Long PRACH formats |
| Up/Downlink instantaneous bandwidth Up to 100 MHz |
| Single Component Carrier |
| 4 Antenna Streams |
| Frequency domain beamforming mode |
| Predefined & Weight-based dynamic ORAN Beamforming |
| 5G-NR frequency bandwidth supported All: 5-100 MHz (FR1) |
| LTE frequency bandwidth supported from 1.4 to 20 MHz |
| 10G/25G Fronthaul Interface and Speed Rate |
| O-RAN over eCPRI Fronthaul |
| S-Plane GPS, Synch-E, PTP |
| O-RAN FH M-Plane |
| HARDWARE SPECIFICATIONS | |
|---|---|
| LTE Compliancy | ETSI TS 136 104 R.12 Wide Range BS |
| 5G NR Compliancy | ETSI TS 138 104 R.16 Wide Range BS |
| Maximum Bandwidth (5G/4G) | 100/20 MHz |
| Tx/Rx Ports | 4 |
| Duplex Mode | TDD, FDD |
| Max inst. BW | Up to 100 MHz |
| Max Pout per port | 2W avg |
| Rx input level | -35dBm Max |
| 5G-NR and LTE Sensitivity | < – 102 dBm |
| Synchronization | GPS, Synch-E, PTP |
| Bands | N40, N78 (others upon request) |
| MECHANICAL SPECIFICATIONS | |
|---|---|
| Dimension(HxWxD) | 240 x 250 x 97 mm |
| Weight | 6 KG |
| Power Supply | 48 VDC |
| Power Consumption | 90 W typ. |
| Data Connectors | QSFP28 / SFP+ |
| Antenna Connectors | 4 x N-Type |
| Debug Connectors | USB and MCX |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| Operating Temperature | -20°C to +55°C |
| Storage Temperature | -40°C to +65°C |
| IP Class | IP67 |
