Azcom Technology provides a carrier grade 5G, 4G, NB-IoT PHY software across different platforms. Modular design, well-defined interfaces and support for different 3GPP and O-RAN functional splits ensure scalability and customization for different use cases and deployment scenario. The PHY software have been fully conformance tested as specified in 3GPP specifications and are also end-to-end tested in a real deployment scenario.
Azcom highly experienced signal processing team has been developing PHY and baseband software for over 25 years for different OEMs and device vendors and has expertise across all the phases of development cycle: systems engineering, algorithms design, modelling and simulation, and implementation on DSPs, FPGAs, vector and general-purpose processors.
PHY software are available either as stand-alone package or pre-integrated with Azcom L2/L3 Stack Software and ported to reference platforms.

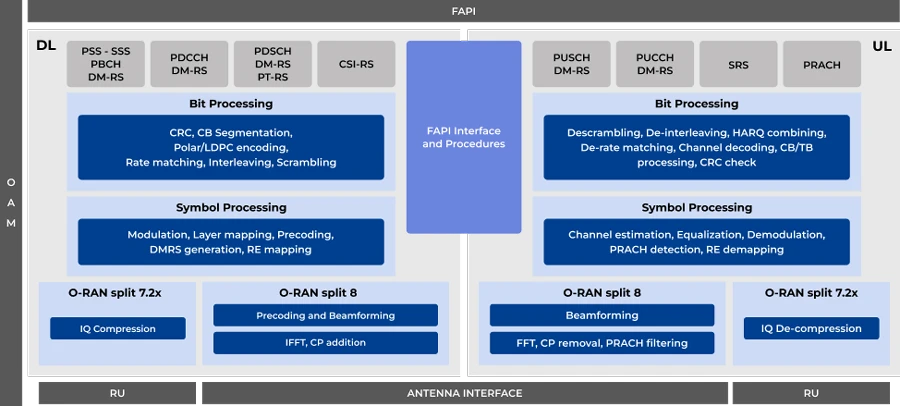

5G PHY/ 5G High-PHY
Key Features
- 3GPP R16 & O-RAN v.9.0 compliant
- O-RAN 7.2x & 3GPP 8, 7, 6 Split
- FAPI support
- FDD, TDD duplexing modes
- All FR1 Bands & bandwidth up to 100 MHz
- All FR1 Sub-Carrier Spacing
- 4T4R MIMO, up to 256 QAM DL & UL
- PDCCH All DCI formats
- PDCCH All Aggregation levels
- PDSCH 8 UE/TTI & PUSCH 4 UE/TTI
- PUSCH with UCI Multiplexing
- PUCCH All Short and Long Formats
- PRACH All Short and Long Formats
- Additional DM-RS, CSI-RS, SRS
- Dynamic Spectrum Sharing

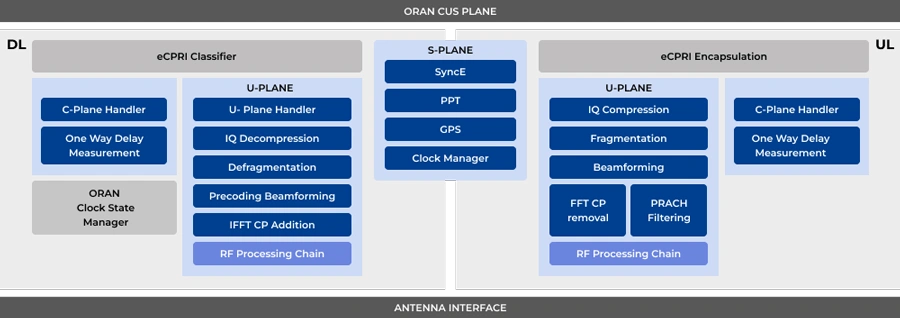

5G Low-PHY
Key Features
- 3GPP R16 & O-RAN v.9.0 compliant
- O-RAN 7.2x Split
- FH C/U/S/M-plane
- FDD, TDD duplexing modes
- All FR1 Bands and bandwidth up to 100 MHz
- All FR1 Sub-Carrier Spacing
- 4T4R MIMO, up to 256 QAM DL & UL
- Up to 32 Antenna configurable
- Category A and B supported
- Normal Cyclic Prefix
- Predefined & Weight-based dynamic beamforming
- U-plane: Reception Window Monitoring
- No compression, BFP/Modulation compression
- C-plane: Section Type 0, 1, 3 & Ext 1, 4, 5, 6, 7, 11, 12

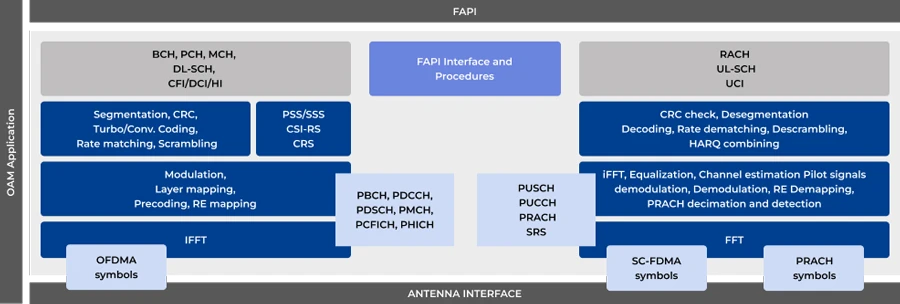

4G PHY
Key Features
- 3GPP R13 compliant
- FAPI support
- FDD, TDD duplexing modes
- All Bands and bandwidth up to 20 MHz
- 4x4 MIMO
- Normal and Extended Cyclic Prefix
- PDSCH & PUSCH 10 UE/TTI
- PRACH All formats supported
- PUCCH All formats supported
- MBSFN, SRS and positioning reference signals
- High Speed Mobility: ETU 300Hz
- 3GPP PHY measurements supported

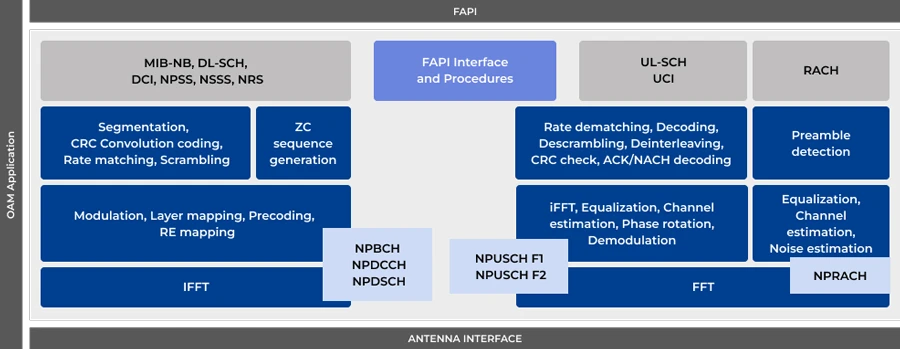

NB-IoT PHY
Key Features
- 3GPP R13 compliant
- FAPI support
- Duplexing mode: Type B, Half Duplex FDD
- Dual Mode LTE + NB-IoT
- All NB-IoT Bands
- Up to 2 Antenna ports support
- In-Band and Guard-Band allocation
- QPSK & BPSK (uplink only) modulation
- Single-tone and Multi-tone
- All Coverage Enhancement Levels
- 15KHz & 3.75KHz Sub-Carrier Spacing
- NPDSCH & NPDCCH all formats
- NPRACH & NPUSCH all formats
